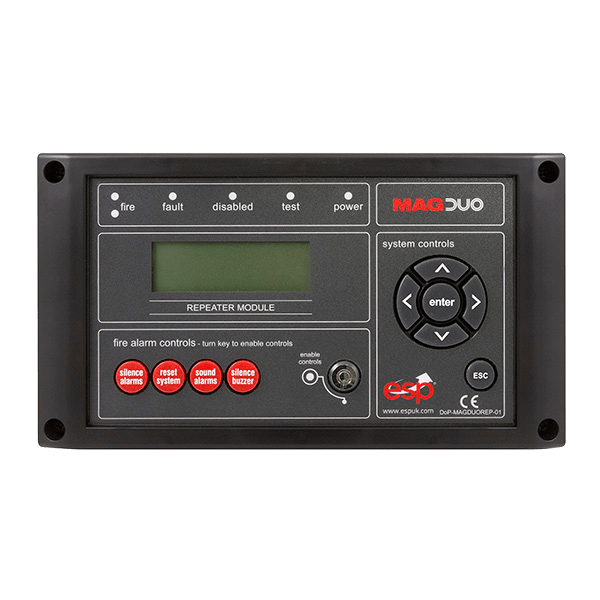

Features
- Compatible with MAGDUO 4 or 8 zones control panels only
- Reports MAGDUO panel events to a remote location
- Capable of performing system controls (i.e. Silence Alarms, Reset, Sound Alarms & Silence Buzzer)
- Maximum of 8 repeater panels can be connected to a single control panel
- Requires EN54-4 Compliant PSU
Play Video
Exit Zoom
Close Video
Features
- Compatible with MAGDUO 4 or 8 zones control panels only
- Reports MAGDUO panel events to a remote location
- Capable of performing system controls (i.e. Silence Alarms, Reset, Sound Alarms & Silence Buzzer)
- Maximum of 8 repeater panels can be connected to a single control panel
- Requires EN54-4 Compliant PSU
Description
ESP’s Fire Protection range is built to deliver the perfect balance of performance, reliability, and visual appeal. Fully CPR compliant and certified to EN54 standards, the range offers a complete solution for professional fire alarm installations—covering two-wire, conventional, and addressable systems. With durable, high-quality components designed for straightforward installation and long-term dependability, it’s everything you need to ensure full compliance and peace of mind.
ESP’s Fire Protection range is built to deliver the perfect balance of performance, reliability, and visual appeal. Fully CPR compliant and certified to EN54 standards, the range offers a complete solution for professional fire alarm installations—covering two-wire, conventional, and addressable systems. With durable, high-quality components designed for straightforward installation and long-term dependability, it’s everything you need to ensure full compliance and peace of mind.
Tech Specs
Materials
ABS UL94:V2
Mounting
Surface
Nominal Operating Voltage (V DC)
24
Maximum Current Consumption
50mA (24V DC)
Maximum Cable Size (mm²)
1.5 (2 Core Screened Fire Rated Cable)
Compatible Panels
MAGDUO 4 & 8 Zone panels only
Maximum Number Per Panel
8
Communication Type
RS-485
Dimensions (mm)
250 x 140 x 85
* For more technical information, please
download our technical data below.
download our technical data below.
